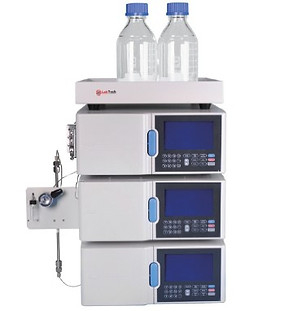

High Performance Liquid Chromatography (HPLC)

HPLC is a widely used method for the purification and separation of components in a sample. LabTech's HPLC System is the flexible and reliable workhorse that meets your fundamental HPLC separation requirements.  The system is synonymous with dependable, routine performance and versatility.

​

• Compact design provides flexible configurations to meet various applications.

• High accuracy, precision, and sensitivity.

• Small dead volume, low noise, and low drift.

• Large LCD screen for convenient operation

​

Standard Configurations

​

• P600 High Pressure Liquid Pump

• UV600Plus UV Detector

• HPLC Workstation

• Column and Column Oven (optional)

• Start-up kit

​

Technical Specifications



P600 high pressure liquid pump

• Principle tandem double plunger

• Flow range: 0.001～9.999ml/min

• Flow precision: <0.08%RSD

• Flow accuracy: ±1%

• Maximum pressure: 42MPa

• Plunger cleaning: On-line cleaning

​

UV600PLUS UV detector

• Wavelength scope: 190～600nm

• Light source: Deuterium lamp (standard)

• Tungsten lamp (optional)

• Wavelength accuracy: ±1.0 nm

• Wavelength precision: ±0.2 nm

​​

Chromatography Workstation

• CDF data format: compatible with Microsoft Office, AIA   standard, and workstations of many leading manufacturers, such as Agilent and Waters.

• Settable parameters of pump, detector, and autosampler

• Settable sample load method.

• Automatically process peak identification, baseline correction, segmentation of overlapped peaks.

• Quantitative results can be output to Excel format via clipboard; Analysis records can be saved directly into an Access database.

• The arithmetic program can overlap different chromatogram simultaneously.

• The consumption of mobile phase can be monitored automatically.

​​​​​​​​​​
