This Agilent G8481A Water Chiller, 115V has a very good condition. One-month warranty is included. The return is acceptable in one month after delivery if the chiller is deficient.



The Agilent Technologies G8481A Water Chiller for the Agilent 700 Series ICP Optical Emission Spectrometer can be used to ensure the delivery of coolant at the correct pressure and temperature. The water chiller is equipped with a water flow sensor, which will stop operation of the plasma and camera Peltier assembly if the cooling water flow through the instrument drops below 1.1 L/min (0.3 gal/min). Pressure regulation is recommended for water chiller systems that may exceed the maximum permissible pressure of 310 kPa (45 psi) or may be subject to pressure fluctuations. The water chiller generates approximately 1,000 watts (joules per second), or 3,600 kilojoules per hour (3,412 BTU per hour).

Specifications:
– Electrical Requirements: 115VAC, 60Hz, 1645 VA
– Voltage ±10%, Frequency ±1Hz
– Cooling capacity:
– Axial system: 1 kW
– Radial system: 200W
– Flow rate: 1.1 L/min (0.3 gpm) minimum
– Recommended inlet temperature: 20°C (68°F)
Maximum for Agilent 720 Series ICP-OES: 30°C (86°F)
Maximum for Agilent 710 Series ICP-OES: 4°C (113°F)
– Minimum inlet pressure: 55 kPa (8.0 psi)
– Maximum inlet pressure: 310 kPa (45 psi)
– Weight: 181 lb. (82 kg)
– Dimensions (W x H x D): 14.5 x 22.6 x 27.6 in. (368 x 575 x 702 mm)

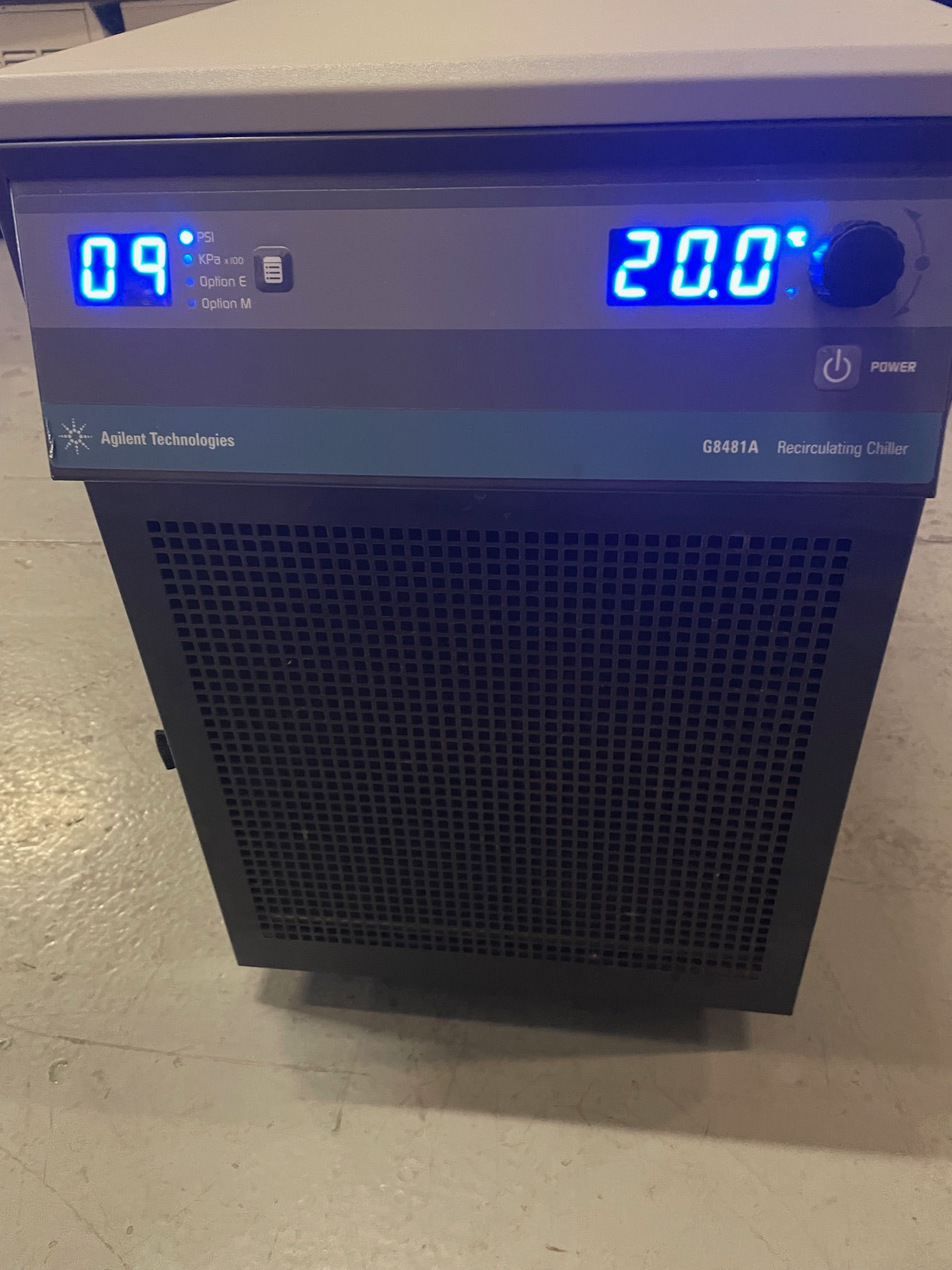

Agilent G8481A water chiller

SKU: G8481A
$2,750.00Price
